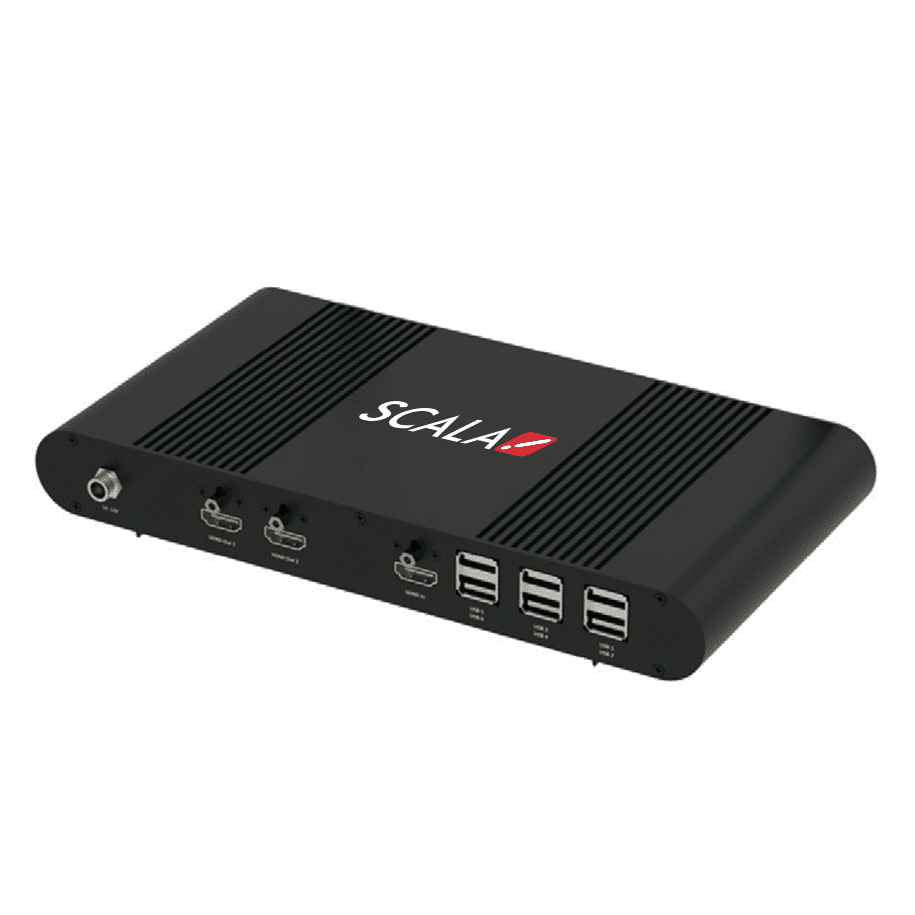

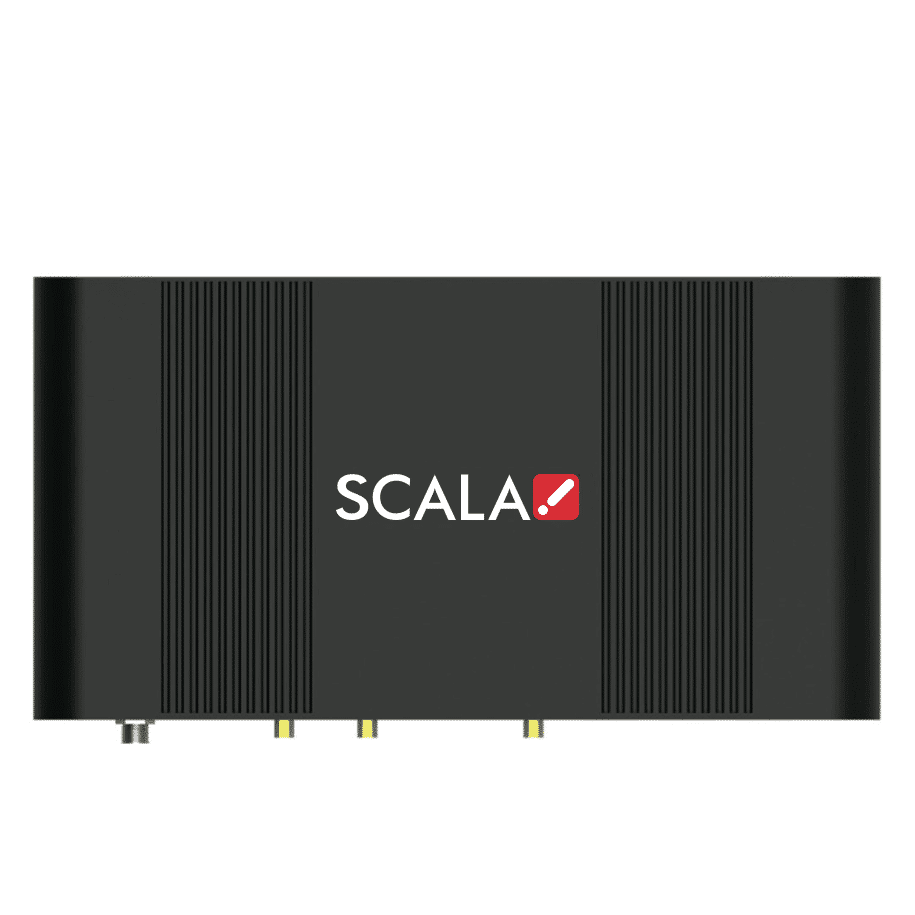

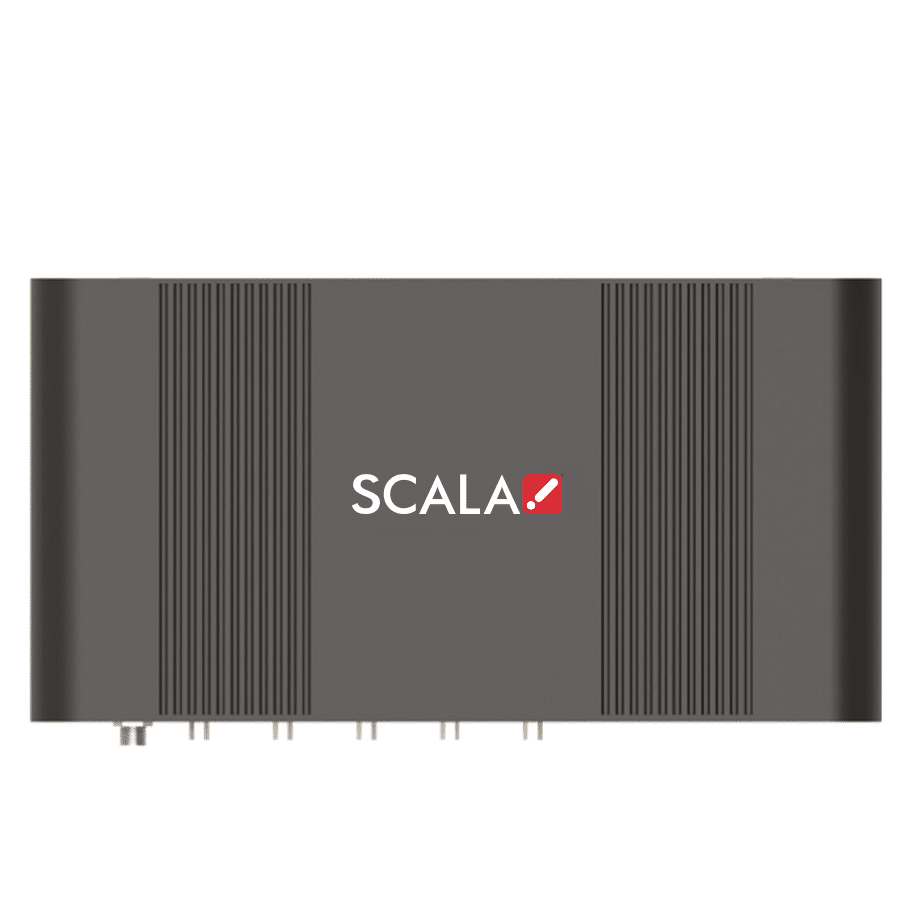

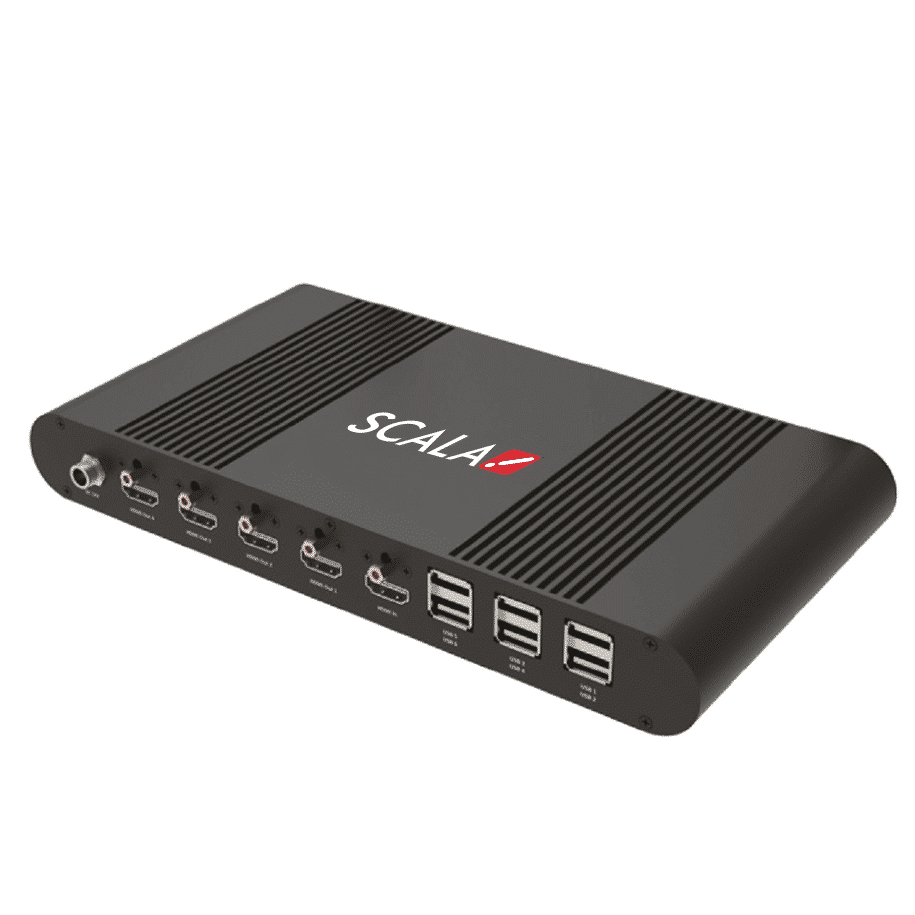

Scala Media Player NX4

Compact, quad-output, digital media player ideal for outdoor digital signage

Our SCALA NX4 player is an affordable solution for stable, reliable content delivery for digital content, especially optimized for outdoor signage. Designed and developed by SCALA’s engineering team, this media player works seamlessly with SCALA’s digital signage software, matching powerful performance with turnkey simplicity.

An optimized architecture ensures high-quality performance throughout its entire lifetime. System hardening minimizes vulnerabilities and delivers robust system security. The media player’s fanless design keeps it protected from dust and debris, ideal for any digital signage solution in any environment.

  • Supported OS: Linux
  • Processor: ARM Cortex A57 MPCore Quad-Core Processor with NEON Technology Maximum Operating Frequency 1.43GHz
  • Memory: Nano P3448 Onboard: 4GB Dual-Channel LPDDR4
  • Storage: Nano P3448 Onboard: 16GB eMMC Flash 256 GB M.2 NVMe (2242/2280) SSD Standard, upgradable to 1TB
  • Power: DC input 12V 3A with Screw Lock Optional: Power Over Ethernet IEEE 802.3at (25.5W) on Eth0
  • Network: Gigabit Ethernet RJ45
  • Audio: RealTek Audio Codec and 3.5mm Aux Output
  • USB: 6 x USB 2.0 (Type A), 1 x USB 2.0/Service (Type C)
  • Serial: 6P6C (RJ11)
  • Mount: Vesa 100 x 100mm (Mounting plate included)
  • Enclosure: Aluminum Case
  • Dimensions: 238.5 mm x 124.7 mm x 33.2 mm / 9.38in x 4.91 in x 1.31 in
  • Weight: 915 kgs / 2.01 lbs
  • Operating Temp: 0° – 55° C / 32° – 131° F
  • Storage Temp: -15° – 65° C / 5° – 149° F
  • Humidity: 10 – 90%
mediaplayer

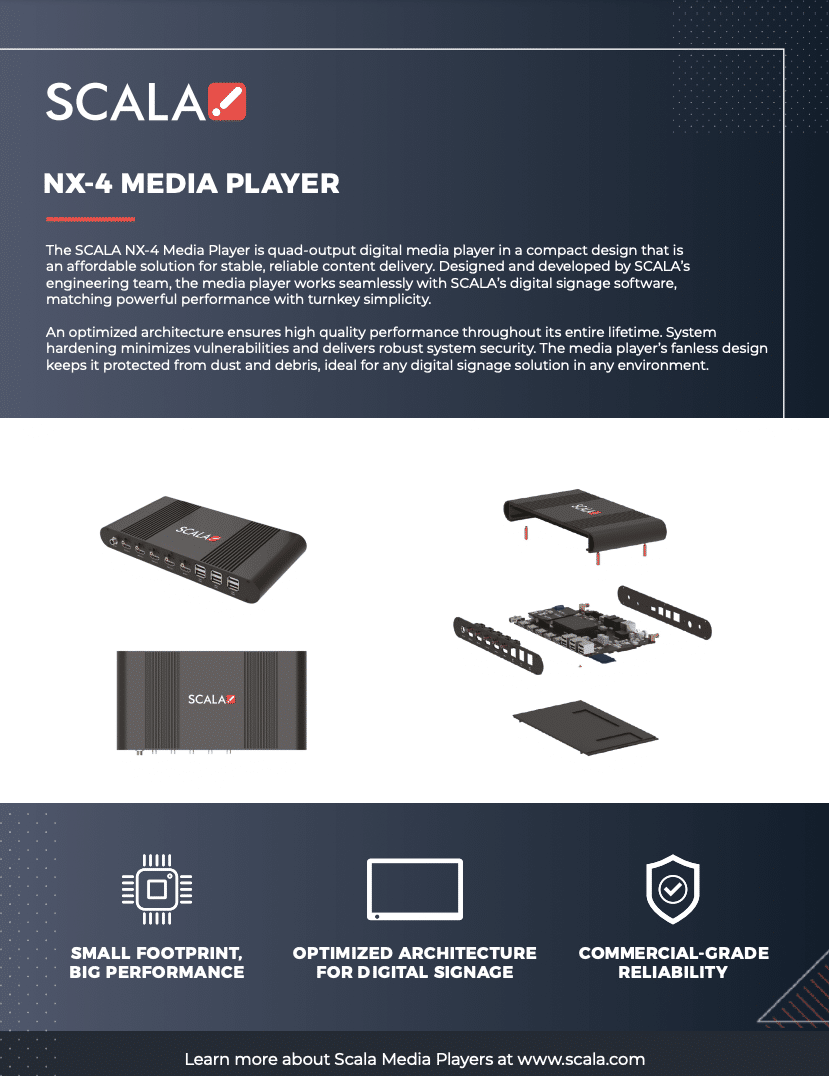

Scala NX4 Media Player Spec Sheet

Download
