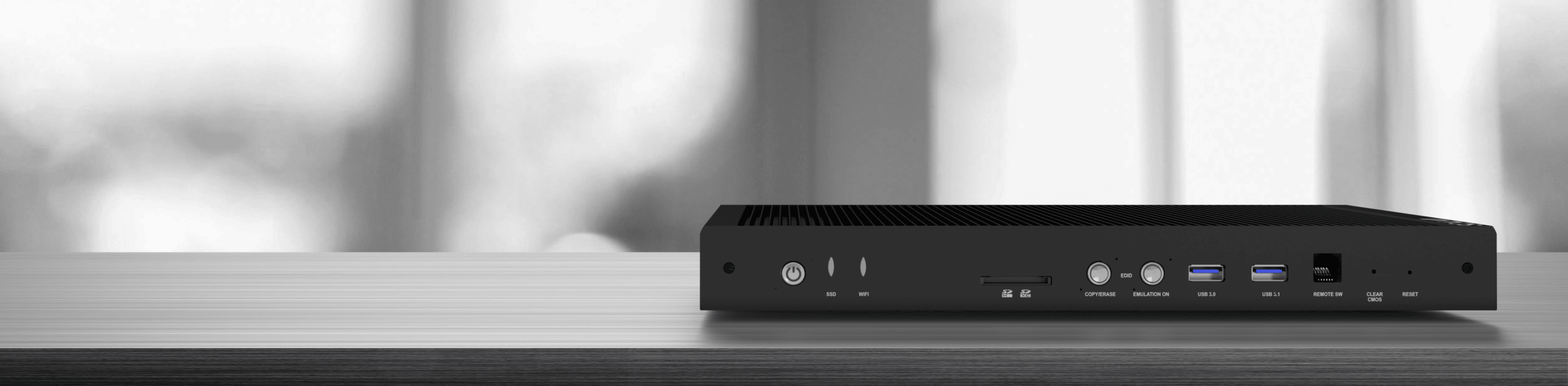

Scala Media Player-DX

A dual output digital media player that delivers enterprise performance and seamless playback of UHD content

The Scala Media Player-DX is a dual UHD 4K output digital media player that delivers
enterprise performance and seamless playback of UHD 4K content. Designed and
developed by Scala’s engineering team, the media player works seamlessly with
Scala’s digital signage software, matching powerful, stable performance with turnkey simplicity.

An optimized architecture ensures high quality performance throughout its entire
lifetime. System hardening minimizes vulnerabilities and delivers robust system
security. The media player’s fanless design keeps it protected from dust and debris, ideal for any digital signage solution in any environment.

  • Supported OS: Windows 10 IoT Enterprise LTSC or Linux
  • Processor: AMD Ryzen V1202B Dual-core 2.3 GHz/3.2 GHz
  • Graphics: Integrated AMD Radeon Vega 3
  • Memory: 8 GB DDR4 SO-DIMM RAM (dual-channel)
  • Storage: 128 GB M.2 SATA SSD
  • Power: DC 12 V with screw lock
  • Network: Dual Gigabit Ethernet port, wireless IEEE 802.11 a/b/g/n/ac Wi-Fi, Bluetooth 4.2
  • Antenna: Two 2.4 GHz / 5 GHz dual-band antenna
  • HDMI: Two HDMI 2.0 ports with screw lock
  • USB: Two USB 3.1 Type A ports, One USB 3.0 Type A port
  • Serial: One DB9 Male
  • Enclosure: Anodized aluminum case, fanless
  • Dimensions: 300 x 186 x 32 mm / 11.8 x 7.3 x 1.3 in
  • Weight: 2145 g / 4.7 lb
  • Operating Temp: -10° – 45° C / 14° – 113° F
  • Storage Temp: -55° – 75° C / -67° – 167° F
  • Humidity: 5 – 95% Non-condensing
mediaplayer

Scala Media Player- DX Spec Sheet

Download
